About Us
Company
CHINA YIHE AXLES Co., Ltd was established in 1994, located in Zhucheng city of Shandong province. Now, YIHE is becoming one of the biggest axle production bases with the annual capacity of 1.2 million sets axles. YIHE owns 5 production bases, located in Zhucheng of Shandong and Changsha of Hu’nan. Our company has 2500 employees and mainly produces Truck front axles, truck seats, welding structure parts, independent suspension axles, U bolts, agricultural drive axles.
500Sets
Equipments
1200000Sets
Annual Production Capacity
5000m2
Technical Center
View More
Products
I-Beam Axle
Welded Structural Parts
Truck Axle & Truck Seat

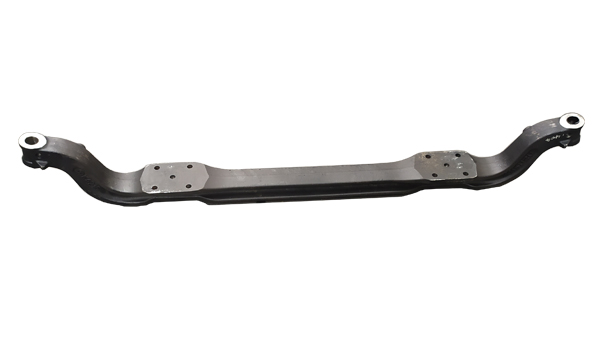

1.5 ton I-BEAM
Material:45# Rated load:1.5T Distance between kingpins:1354 Distance between leaf springs:710 Kingpin diameter:φ25 Kingpin Inclination:7.5° Drop:64+8

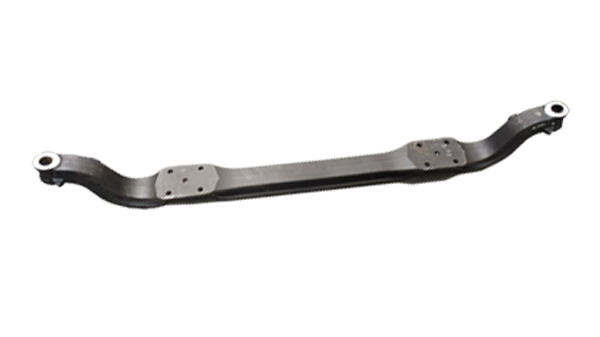

2.2 ton I-BEAM
Material:45# Tonnage:2.2T Distance between kingpins:1359 Distance between leaf springs:750 Kingpin diameter:φ30 Kingpin Inclination:7.5° Drop:64+5

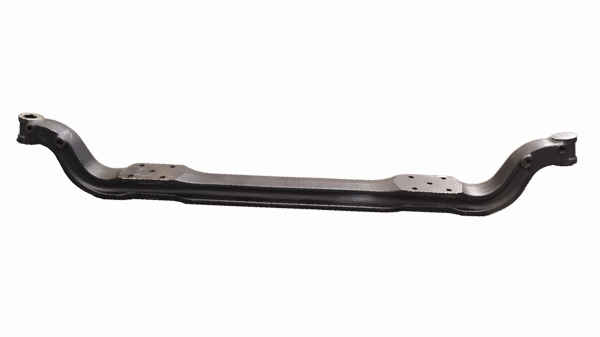

2.5 ton I-BEAM
Material:45# Tonnage:2.5T Distance between kingpins:1472.4 Distance between leaf springs:760 Kingpin diameter:φ32 Kingpin Inclination:8° Drop:70+34

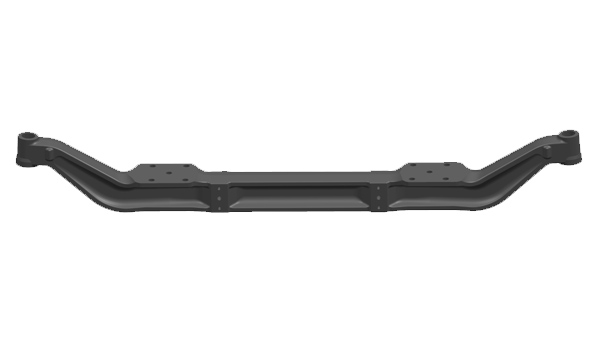

7.5 ton I-BEAM
Material:42CrMo Tonnage:7.5T Distance between kingpins:1767 Distance between leaf springs:850 Kingpin diameter:φ45 Kingpin Inclination:3° Drop:89

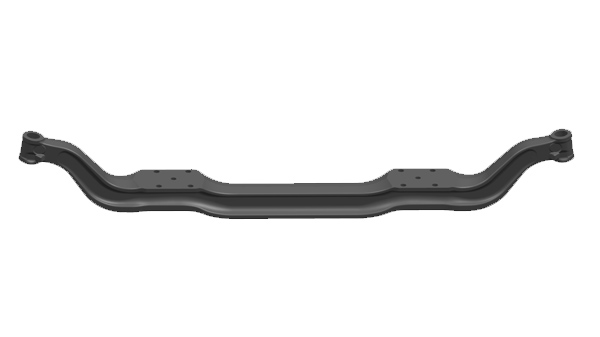

5.5 ton I-BEAM
Material:42CrMo Tonnage:5.5T Distance between kingpins:1853.3 Distance between leaf springs:850 Kingpin diameter:φ47 Kingpin Inclination:7° Drop:φ16

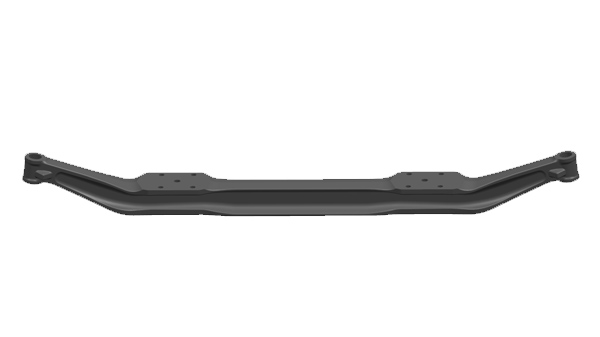

5 ton I-Beam
Material:42CrMo Tonnage:4.5~6.1T Distance between kingpins:1820 Distance between leaf springs:850 Kingpin diameter:φ45 Kingpin Inclination:6.5° Drop:φ14
View all products

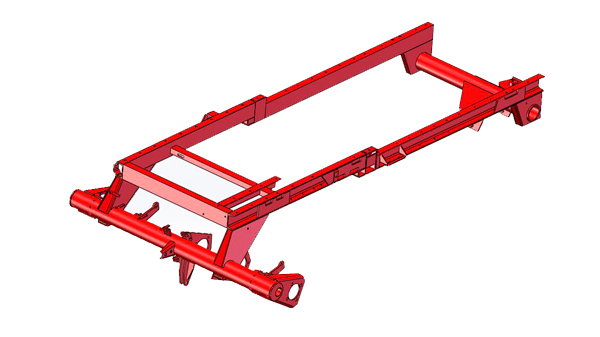

Welded structural parts of wheat harvester chassis
The front axle and the frame adopt an integrated structure, and the header can adopt single cylinder or double cylinder.

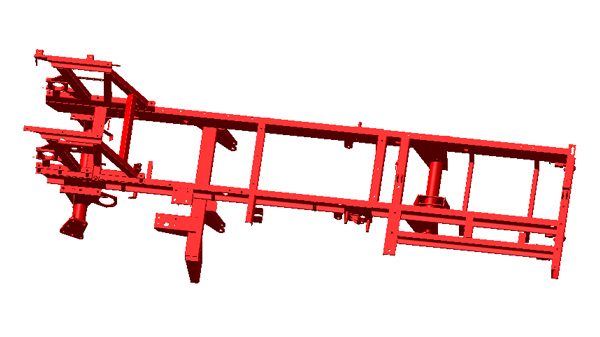

Welded structural parts of corn harvester chassis
The upper frame and the front axle have two structures.(Welding in one piece or assembling separately)

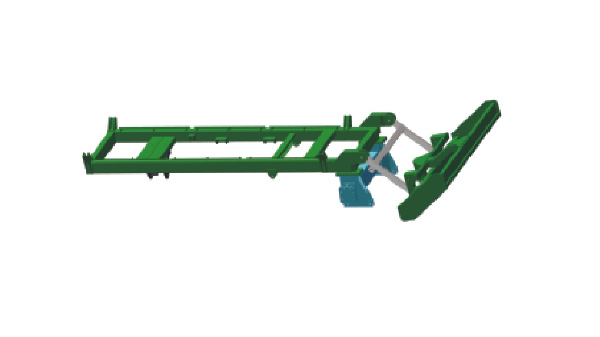

Welded structural parts of cotton picker chassis
The front axle closed side by structure ; The rear axle fixed seat with casting structure.

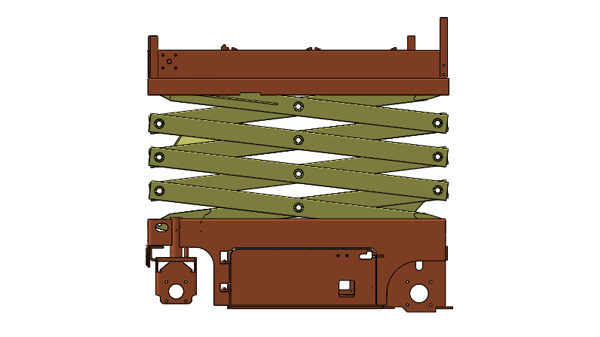

Welded structural parts of lifting machine chassis
Turn to use welding body for connection,The steering shaft sleeve is made of special materials,Durable wear resistance,The safety factor is improved.

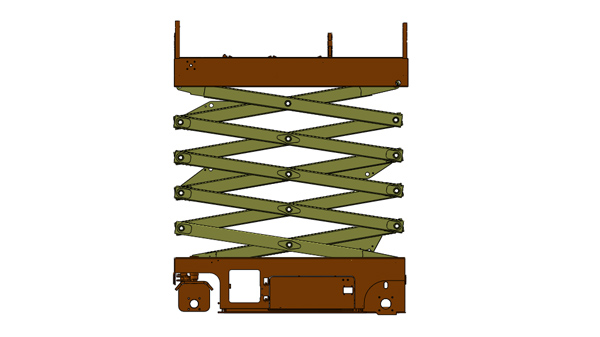

Welded structural parts of lifting machine platform
Turn to use welding body for connection,The steering shaft sleeve is made of special materials,Durable wear resistance,The safety factor is improved.

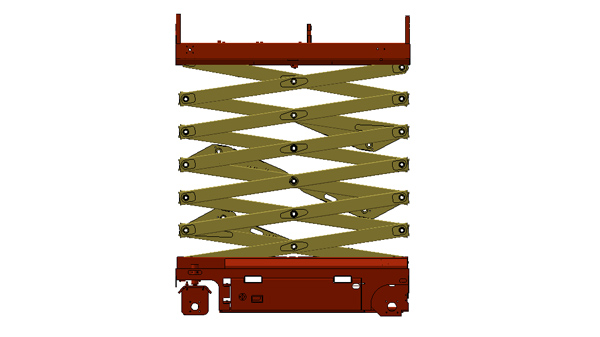

Welded structural parts of lifting machine scissors
Turn to use welding body for connection,The steering shaft sleeve is made of special materials,Durable wear resistance,The safety factor is improved.
View all products
1 ton truck steering axle
Material:45 Tonnage:1T Distance between kingpins:1165~1360 Distance between leaf springs:650~780 Kingpin diameter:φ25 Kingpin Inclination:7.5° Drop:23~60 Brake specification:Φ280~320 Rim mounting face
distance:1215~1600

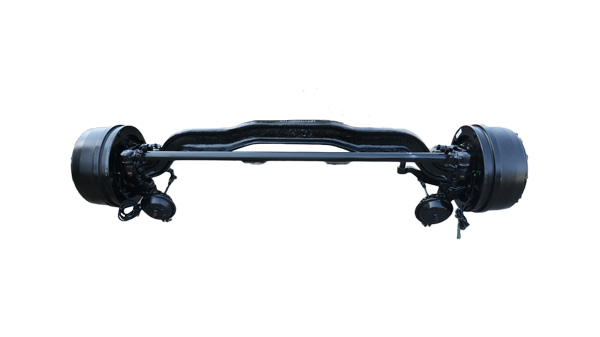

3.5 ton truck steering axle
Material:40Cr Tonnage:3.5 T Distance between kingpins:1630 Distance between leaf springs:800 Kingpin diameter:φ32 Kingpin Inclination:8° Drop:95 Brake specification:Φ320~360 Rim mounting face distance:1900~2224
4 ton truck steering axle
Material:45 Tonnage:4 T Distance between kingpins:1727 Distance between leaf springs:851~890 Kingpin diameter:φ38 Kingpin Inclination:7° Drop:74 Brake specification:Φ400 Rim mounting face distance:2204

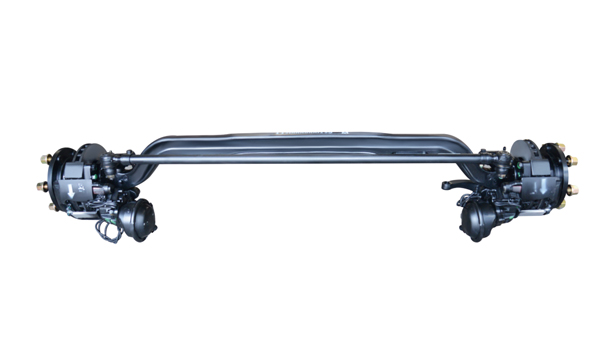

2.2 ton truck axle
Material : 42CrMo
Rated load : 2.2T
Distance between kingpins:1490 Distance between leaf springs:850 Kingpin diameter:φ35 Kingpin Inclination:7° Drop:89 Brake specification:Φ250*45 Rim mounting face distance:1980
6.5ton truck axle
Material : 42CrMo
Rated load : 6.5T
Distance between kingpins:1800.8 Distance between leaf springs:850 Kingpin diameter:φ52 Kingpin Inclination:7° Drop:89 Brake specification:Φ430*45 Rim mounting face distance:2410.7
9ton truck axle
Material:42CrMo Rated load:9T Distance between kingpins:1770 Distance between leaf springs:850 Kingpin diameter:φ52 Kingpin Inclination:6° Drop:89 Brake specification:Φ420*180 Rim mounting face distance:2372
View all products
1
Provide CustomizedForms
2
Analyze CustomerNeeds
3
Design TeamDiscussion
4
Drawing of ContourParameters
5
Drawing Confirmation orCommunication Modification
6
Custom SampleProduction
7
Sample LoadingRoad Test
8
Mass Production
Axle customization processCustomize Now
Cases
Tractor axles used by Foton Lovol
Absorbing advanced technology of foreign drive axles;
·The internal structure includes central reduction, ...

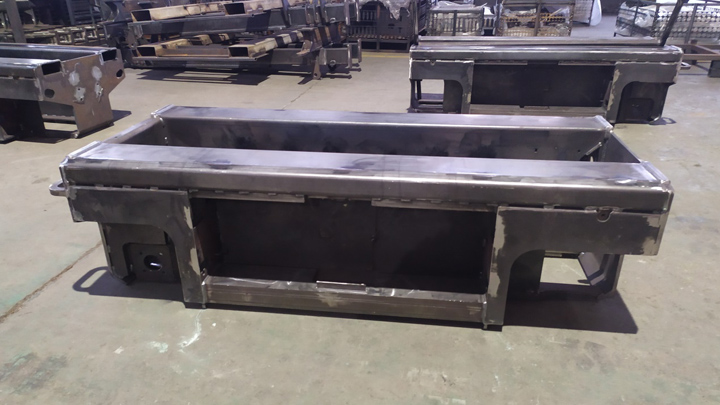

Lingong Group Jinan Heavy Machinery uses welded structural parts of the lifting machine chassis.
Customer Name:Lingong Group Jinan Heavy Machinery Customer Products:Aerial Work Platforms Welded structural ...

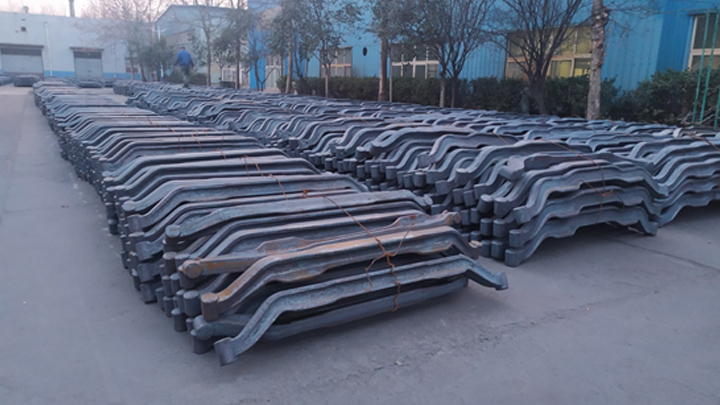

Foton uses Yihe axles products
The largest axle manufacturer in China, an excellent supplier of China's mainstream automobile manufacturers, ...

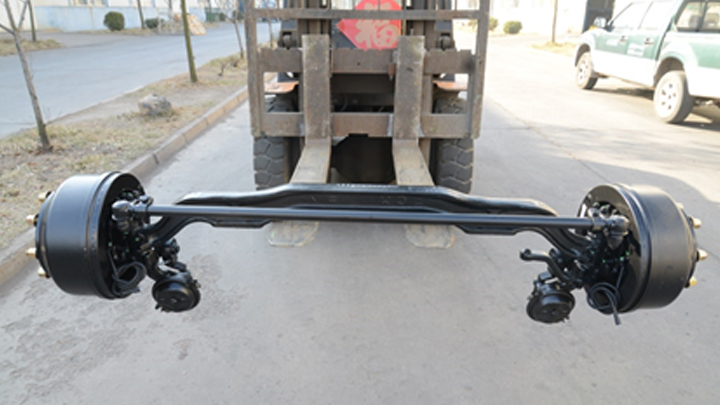

Ollin uses truck steering axle
Customer Name:FOTON Customer Products:OLLIN Application products:truck steering axle. The largest axle manu...
Boshiran uses Welded structural parts of cotton picker chassis
Customer Name:Boshiran Customer Products:cotton picker Application products:Welded structural parts of cott...
Why choose us
R&D Capability
In 2011, Yihe was approved by the provincial science and Technology Department of Shandong Province to construct “ Shandong Province Vehicle Axles Engineering Research center ”. This engineering center has 7 professional engineering centers and more than 190 engineers. It has won more than 129 national patented technologies for axle production.
Mass Production
Introduce more than 500 sets of advanced, precise and topequipments, has three high efficient welding assembly lines, four light duty truck axle assembly lines, two medium and heavyduty truck axle assembly line, and two high level heavy truck axle assembly lines, with the annual production capacity of 1.2 million sets.
Powder Coating Line
Invested 20 million to build a powder spraying line, which enhanced the product's appearance weather resistance, brightness and hardness, and the salt spray test reached 1,000 hours. Adhesion reaches the highest standard of level zero.

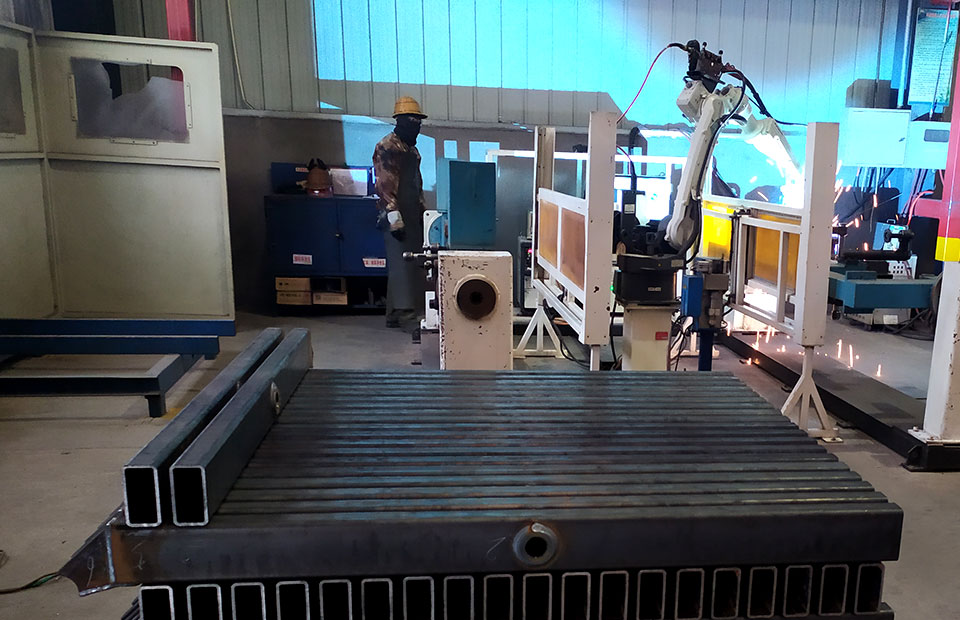

High Quality
Established the Axle Parts Inspection Department to fully monitor the quality of raw materials 3 automated welding production lines with high degree of automation and guaranteed quality. The company has passed IATF16949 quality system certification, EU TUV certification, CWB certification.
R&D Capability
Mass Production
Powder Coating Line
High-quality
LATEST NEWS
Jan17View More
2026 Annual Business Plan of China Yihe Axle Company
Recently, the 2026 business plan meeting of Yihe Axle Co., Ltd. was successfully held. The following are the key meeting contents:
Dec23View More
Yihe Axle has won 8 awards from Foton Motor, creating a model of cooperation with strong capabilities
Recently, at the award ceremony of Foton Motor 2025 Global Partner Conference, Zhucheng Yihe Axle Co., Ltd. won eight heavyweight honors including Outstanding Contribution Award, Cooperation Win win Award, Technology Innovation Award, Servi...
Dec17View More
Technological innovation in axle safety and comfort for the new energy light truck market in Chinese cities
The upgraded demand for safety and comfort in the urban new energy light truck market has spurred technological innovation. Yihe Axle is an intelligent front axle assembly customized for Foton Scenery I. It integrates a long-life maintenanc
Dec16View More
What are the advantages of domestic light truck axles in China?
where the industrial cluster effect of commercial vehicles is prominent, the light truck axle manufacturing industry, with its profound industrial accumulation, technological innovation strength and complete supporting system, has become a ...
Dec05View More
Publicity of business license information of corporate enterprises
Scope of Business: Sales of automobile axles, combine harvester chassis assemblies, agricultural machinery, fishery machinery, feed machinery, auto parts, and petroleum machinery; sales of automotive components; and import and export of goods. (Projects that require approval according to law may only be operated after obtaining approval from relevant departments)
Dec04View More
Export Growth Trend of China's Automotive Axle Products
Overall Momentum China’s automotive axle exports are on asustained upward trajectory, with accelerated growth in recent years—fueled by the Belt and Road Initiative (BRI) and global auto industry electrification. Key milestones:...
Dec03View More
Yihe Axle Long Maintenance achieves a 100000 kilometer maintenance interval at the wheel end
1. Case Study of Batch Application of Yihe Axle in Long distance Mainline Logistics Vehicle CompanySelect a logistics enterprise that specializes in cross regional dedicated line transportation (such as a logistics group in Shandong, echoin...
Dec01View More
Double Awards Crown the Industry Benchmark: Yihe Axle Leads the Auto Parts Track with Solid Strength
[Introduction] At the beginning of 2025, the Chinese automotive industry chain has been witnessing a spate of good news. In the field of commercial vehicle core components, Zhucheng Yihe Axle Co., Ltd. has consecutively won two heavyweight ...
Nov24View More
Which is a good manufacturer of heavy-duty truck axles
As the "load-bearing backbone" of the entire vehicle, the axle of a heavy truck not only carries dozens of tons of body and cargo weight, but also directly determines the response efficiency and driving safety of the braking system. Its per...
Nov17View More
Innovation in steering axle technology for Chinese commercial vehicles drives industrial upgrading
Market size and development statusAccording to the latest industry data, the scale of China's commercial vehicle electronic axle market will continue to expand in 2024, and the global commercial vehicle electronic axle market is expected to...
Nov13View More
The importance of matching car axles
In the complex power transmission system of automobiles, axles play a crucial role in carrying and transmitting power and torque. The so-called car axle matching refers to the precise selection or customization of front and rear axles (driv...
Nov11View More
What horsepower should be selected for the front and rear axles of a tractor
The horsepower of tractors is generally 180, 200, 250, 300, 354, 550, 654, 724, 804, 1004, 1204, 1604, etc. If you are only pulling something or small areas of farmland, generally use tractors with less than 354 horsepower, which is less th...
